Product Description

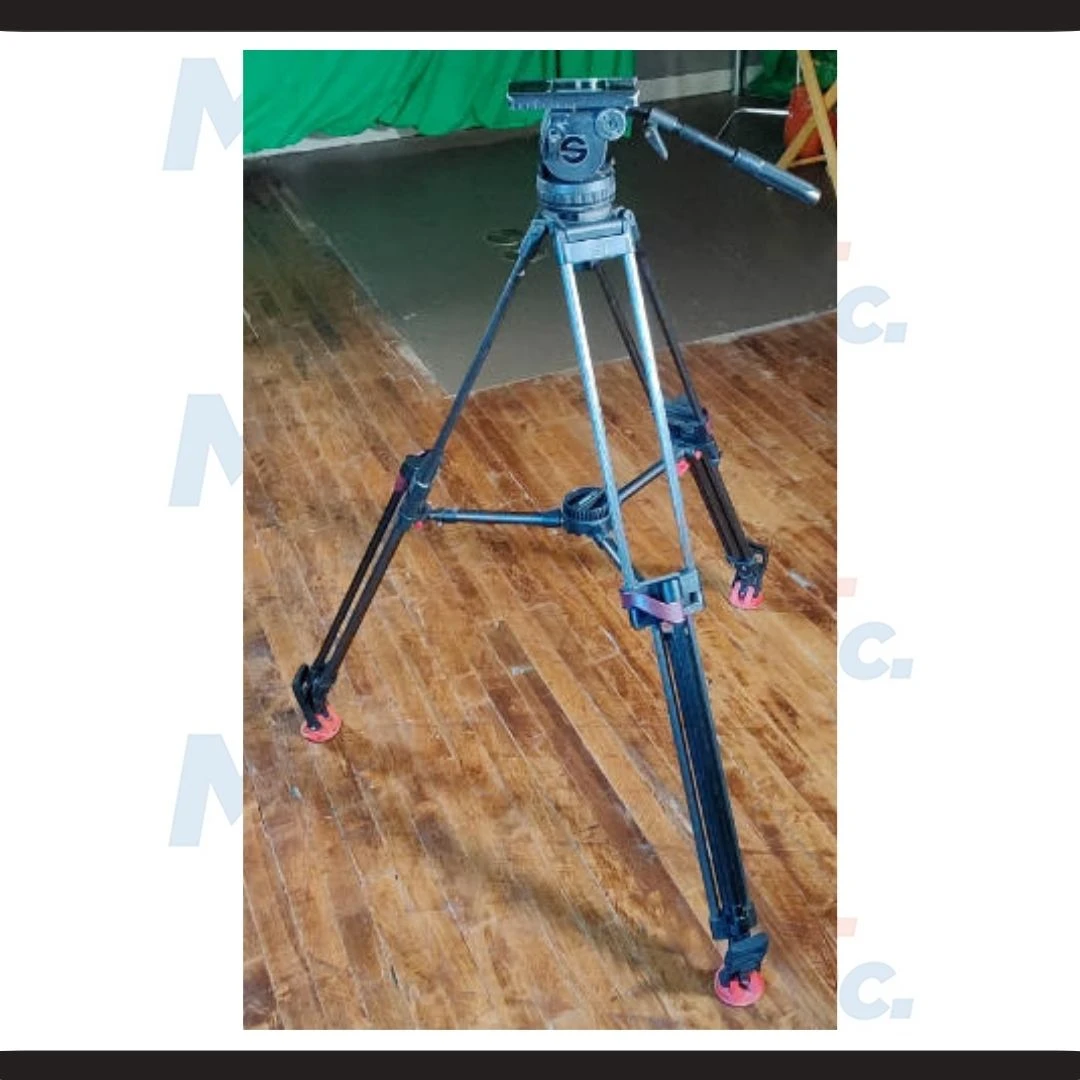

Sachtler Video 18P Fluid Head with 5586 Speed Lock Carbon Fiber Tripod
The Sachtler Video 18P Professional Fluid Head with Sachtler 5586 Speed Lock Carbon Fiber Tripod is a premium professional camera support system designed for broadcast television, ENG/EFP production, documentary filmmaking, and digital cinematography.
Combining Sachtler's precision-engineered Video 18P fluid head with the lightweight and durable 5586 carbon fiber tripod, this complete system provides excellent stability, smooth camera movement, and fast setup for demanding production environments.
The Video 18P fluid head features adjustable pan and tilt drag, a stepped counterbalance system, and a professional 100mm bowl interface. Designed to accommodate professional camera configurations, the head delivers controlled camera movement for interviews, live events, studio production, and field applications.
The Sachtler 5586 Speed Lock Carbon Fiber Tripod features a quick-clamping system for rapid leg adjustment and deployment. Its two-stage carbon fiber construction provides excellent rigidity while minimizing overall weight.
Complete Package: Includes Sachtler Video 18P fluid head, 5586 carbon fiber tripod, camera plate, one pan arm, spreader, rubber feet, and soft carrying bag.
Key Features
- Sachtler Video 18P Professional Fluid Head
- Sachtler 5586 Speed Lock Carbon Fiber Tripod
- Professional 100mm bowl mounting system
- Adjustable fluid pan and tilt drag
- Stepped counterbalance system
- Touch & Go quick-release camera mounting system
- Lightweight carbon fiber tripod legs
- Two-stage, three-section tripod design
- Quick-action Speed Lock leg clamps
- Professional camera plate included
- One pan arm included
- Spreader and rubber feet included
- Soft carrying bag included
- Designed for professional ENG/EFP and broadcast cameras
Technical Specifications – Sachtler Video 18P Fluid Head
- Manufacturer: Sachtler
- Model: Video 18P
- Type: Professional Fluid Video Head
- Payload Capacity: Approximately 4–40 lb (2–18 kg)
- Bowl Mount: 100mm
- Pan Drag: 7 selectable settings
- Tilt Drag: 7 selectable settings
- Pan Range: 360 degrees
- Tilt Range: +90 / -70 degrees
- Camera Mounting: Touch & Go quick-release system
- Head Weight: Approximately 7.3 lb (3.3 kg)
Technical Specifications – Sachtler 5586 Carbon Fiber Tripod
- Manufacturer: Sachtler
- Model: 5586
- Tripod Type: Speed Lock CF
- Construction: Carbon Fiber
- Head Fitting: 100mm bowl
- Leg Design: Two-stage, three-section
- Maximum Tripod Payload: Approximately 88 lb (40 kg)
- Height Range: Approximately 18.1–61 inches with compatible floor spreader
- Transport Length: Approximately 27.6 inches (70 cm)
- Tripod Weight: Less than 6.6 lb (3 kg)
- Leg Locking System: Speed Lock quick-clamping system
Manufacturer specifications are approximate. The fluid head's payload rating determines the supported camera load for the assembled system.
Professional Applications
- Broadcast television production
- ENG/EFP field production
- Documentary filmmaking
- Professional interviews
- Studio and location production
- Live events and corporate video
- Digital cinematography
Condition & Included Equipment
Pre-owned professional Sachtler tripod system. Please review all photographs for the exact cosmetic condition and included components.
Included Equipment:
- Sachtler Video 18P Professional Fluid Head
- Sachtler 5586 Speed Lock Carbon Fiber Tripod
- Camera mounting plate
- One pan arm
- Tripod spreader
- Rubber feet
- Soft carrying bag
Sold exactly as pictured and described.
