Narda Miteq DN-3BU-1 Test Translator
Description:
Test Translator (often referred to as a test loop translator) is used in satellite earth stations and communications laboratories. It takes an uplink signal (such as a Ku-band or Ka-band frequency) and translates it down to a downlink frequency. This allows technicians to test transmitting and receiving equipment in a closed-loop environment without sending signals up to an actual satellite.
-
Frequency & Port Specifications
-
- Impedance: 50 ohms nominal on all RF ports.
- Input / Output Return Loss: 18 dB minimum.
- Maximum RF Input (Non-damage): +10 dBm maximum.
- Signal Monitoring: -20 dBc nominal
- Conversion Loss: 18 dB maximum (15 dB typical).
- Conversion Loss Stability: ±0.25 dB/day at a constant temperature of 23°C.
- Amplitude Response: ±0.25 dB over any 40 MHz segment; ±1.0 dB across any entire output frequency band.
- Level Control: 30 dB continuously adjustable via the rear panel.
- Intermodulation Distortion: Less than -50 dBc minimum with two in-band signals at a -13 dBm input.
- Input / Output Isolation: 60 dB minimum.
- Frequency Stability: ±1 x 10⁻⁶/day across the 0°C to 50°C operating range.
Primary Power Requirements
- AC Supply Voltage: 90–250 VAC (Autosensing).
- AC Line Frequency: 47–63 Hz.
- Power Consumption: 25 Watts typical
Physical Dimensions
- Width (Standard Rack Mount): 19 inches [482.6 mm]
- Panel Height: 1.75 inches [44.45 mm] (Standard 1U rack space)
- Chassis Depth / Length: 20 inches [508 mm] maximum
Product Videos
Custom Field
Condition Pre-owned

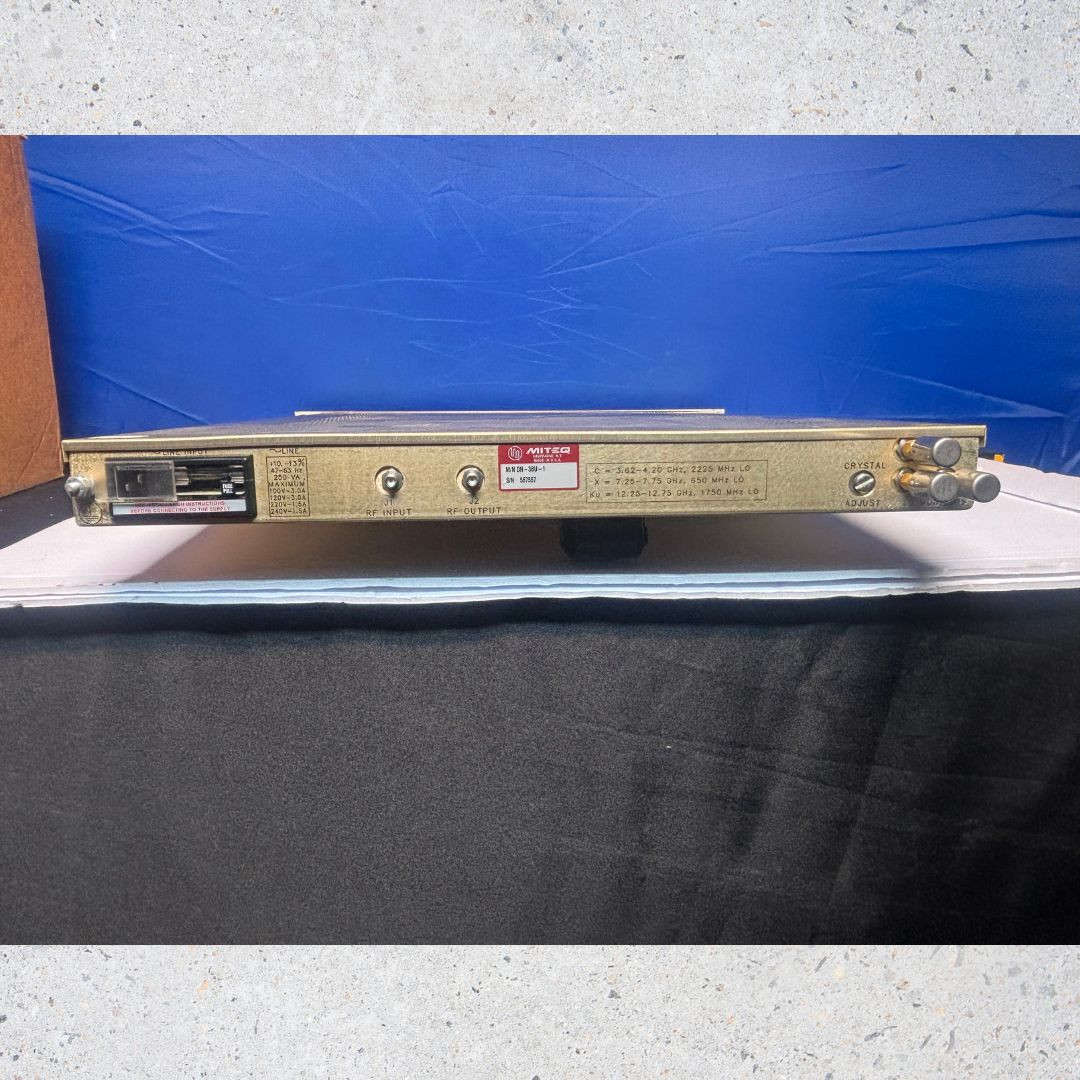

Narda Miteq DN-3BU-1 Test Translator
